2 AXIS Motorized Camera Pan-Tilt module, Motion Control, Bluetooth Android, Ready To Use Kit

New product

Horizontally and  vertically BLUETOOTH motion control modul.
READY TO USE KIT

More details

Add to wishlist

More info

The OVERMOTION MOTORIZED CAMERA PAN-TILT MODULE is only controllable and programmable with OM SLIDER app. The app is already available in Google Play store for free.

An indispensable tool for Time-Lapse, long shutter time, exclusive video and image recording.
After connecting the camera / camcorder to OVERMOTION MOTORIZED CAMERA PAN-TILT MODULE, the device will be able to expose the camera, start recording, and then stop at the end of the program.


Uniquely precise adjustment of shutter speeds and step distances. MACRO STEP: 0.05 degree
One-screen menu system with simplified controls especially for ease of use.
Informative display.

  • The camera rotating swivel can be tilt able and rotatable within 360 degree range. The drive gear can be simply releasable with the UNLOCK button.
  • Robust design for accurate movement and stable captures
  • Switchable Electronic Brake for precise steps and preventing slippage during steep angle movement with high load.
  • Shutter output.
  • LED power indicator.
  • Convertible for 3 AXIS Motorized OVERMOTION CAMERA SLIDER (optional parts required)
  • Anodized aluminum casing and rail.
  • Stepper motors (not DC GEARMOTOR!!!)
  • Video length and time calculation
  • MACRO STEP
  • ULTRA SLOW motion.
  • Recordable and repeatable camera movements
  • Time can be set between 1-600 seconds Steps

MODES:

  • P SLIDE MODE: camera / camcorder continuous 2 axis movement programmed for maximum five stages, or moving Time-lapse capable devices without auxiliary input for external remote control (action camera etc.). 2-axis camera movement path can be pre-programmed.
    The start and stop position have to be determined in the OM SLIDER application and if necessary, additional four intermediate position could be given as well. The previously determined path can be played back by the Motion control any time with thousandth of a millimeter accuracy. The speed of the playback is adjustable in the application. The camera performs continuous and smooth movement. The OVERMOTION CAMERA SLIDER starts and stops video recording via an optional cable.
    Adjustable parameters: 2-axis camera movement direction / movement speed / (time interval between exposures, 1-120sec for remote control capable cameras.) / 1-5 fixed camera path.

  • P STEP MODE: specifically for PROFESSIONAL time-lapse recordings where 2-axis camera movement can be programmed for maximum five stages and harmonized with camera exposure. The 2-axis camera path can be pre-programmed in 1 to 5 stages.
    The start and stop position have to be determined in the OM SLIDER application and if necessary, additional four intermediate position could be given as well. You can specify the number of desired exposures and the delay time in seconds between the exposures. The Slider will automatically calculates the distances between the steps and the timing of camera exposures based on the previously fixed path, requested number of captures and delay time.
    The application displays the recording in due time, the number of images completed, and elapsed time from the start of the program, the distance traveled, and the completed Time-Lapse Video length.
    The OVERMOTION CAMERA SLIDER starts the exposure of the camera via an optional cable and coordinates the movement, so you can always get blur-free shots. Ideal for long-time exposures, night time-lapse captures.
    Adjustable parameters: 1-5 fixed camera path / number of exposures / delay between exposures 1-600sec

  • P Stop motion MODE: directly for STOP MOTION recordings, camera / camcorder 2-axis movement can be programmed for maximum five stages and harmonized with camera exposure. The 2-axis camera path can be pre-programmed in 1 to 5 stages.
    The start and stop position have to be determined in the OM SLIDER application and if necessary, additional four intermediate position could be given as well. You can specify the number of desired exposures and the delay time in seconds between the exposures. The Slider will automatically calculates the distances between the steps and the timing of camera exposures based on the previously fixed path, requested number of captures and delay time.
    The OM SLIDER application displays the recording in due time, the number of images completed, and elapsed time from the start of the program, the distance traveled, and the completed Time-Lapse Video length.
    OVERMOTION CAMERA SLIDER will start the exposure of the camera via an optional cable and coordinate the movement by pressing the large red EXPO button on the display. The exposure have to be restarted by pressing the red expo button again after rearranging the theme.


The OM SLIDER app minimum system requirement: Bluetooth connection, Android OS 4.0.3 or later!!!

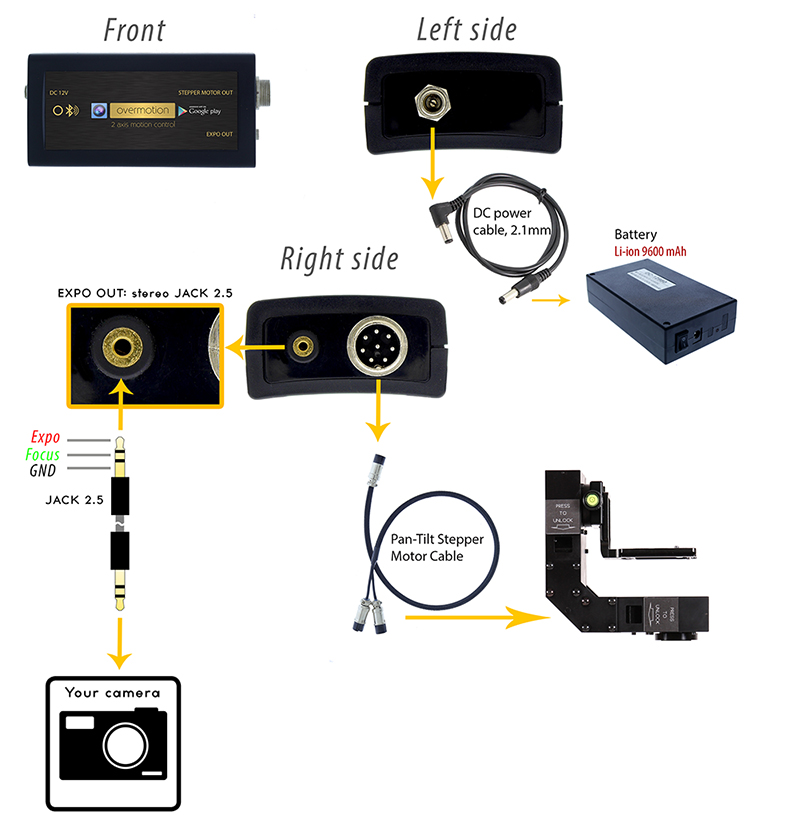

Package contents:

  • 1 pcs Stepper Motorized 2 axis Pan-Tilt Module
  • 1 pcs Bluetooth motor controller
  • 1 pcs Quick Release L-shaped Camera Holder
  • 1 pcs Pan-Tilt Stepper Motor Cable
  • 1 pcs Battery ( Li-ion, 9600 mAh, 12,6V )
  • 1 pcs Dc power cable ( 12V-24V)
  • 1 pcs AC cable (100V-250V)
  • 1 pcs Battery Charger ( input:100V-240V AC, output : 12.6V, 3A)
  • 1 pcs Shutter cable to your camera ( choose from the list )
