1 AXIS Motorized Camera Slider, Motion Control, Bluetooth Android, Ready To Use Kit

New product

One axis ,Stepper motorized, BLUETOOTH, Mobile, High precision camera slider. READY TO USE KIT

More details

$840.00 tax excl.

  • 1m
  • 1.5m

Add to wishlist

More info



The slider is only controllable and programmable with OM SLIDER app. The app is already available in Google Play store for free.


An indispensable tool for Time-Lapse, long shutter time, exclusive video and image recording.
After connecting the camera / camcorder to OVERMOTION MOTORIZED CAMERA SLIDER, the device will be able to expose the camera, start recording, and then stop at the end of the program.

Uniquely precise adjustment of shutter speeds and step distances. MACRO STEP adjustment range: 0.05mm-10mm
One-screen menu system with simplified controls especially for ease of use.
Informative display.

  • Robust design for accurate movement and stable captures

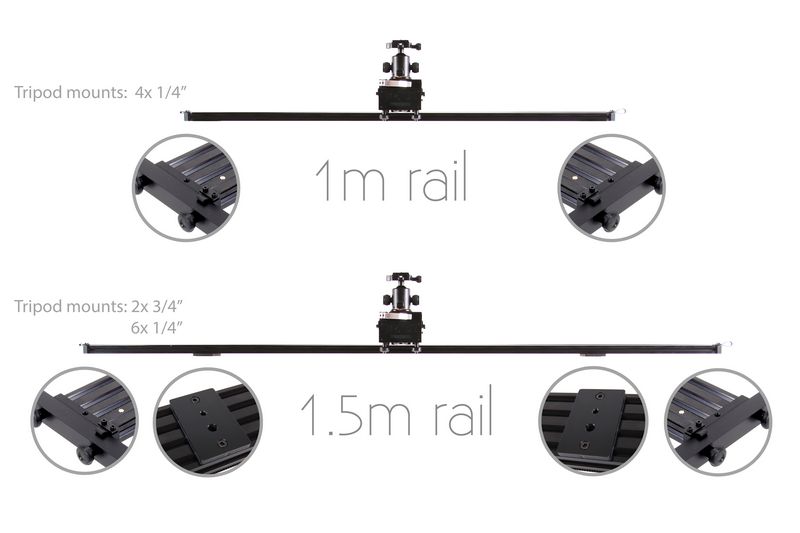

  • Rail length 100 cm or 150 cm.
  • 360 degrees adjustable heavy-duty ball head
  • Switchable Electronic Brake for precise steps and preventing slippage during steep angle movement with high load.
  • Shutter output.
  • Limit detection.
  • LED power indicator.
  • LED field lighting.
  • Convertible for 3 AXIS Motorized OVERMOTION CAMERA SLIDER (optional parts required)
  • Anodized aluminum casing and rail.
  • Stepper motors (not DC GEARMOTOR!!!)
  • Video length and time calculation
  • MACRO STEP (10mm up to 0.05mm), up to 20 000 photos / m
  • ULTRA SLOW motion. Up to 100 min / meter movement speed
  • Recordable and repeatable camera movements
  • Time can be set between 1-600 seconds Steps

MODES:

  • STEP MODE: specifically for PROFESSIONAL time-lapse recordings. The camera / camcorder performs sideways steps. The OVERMOTION CAMERA SLIDER coordinates the timing of the camera movement and exposure via an optional cable which results blur-free shots. Ideal for long-time exposures, night time-lapse captures
    Adjustable parameters: step direction/step distance from 0,05mm up to 10mm/Time between exposures: 1s-600s

  • SLIDE MODE: The camera / camcorder moves continuously. Capable for continuous video recording. The camera performs continuous and smooth movement. The OVERMOTION CAMERA SLIDER starts and stops video recording automatically via an optional cable. In this mode the OVERMOTION CAM SLIDER is also suitable for moving devices without auxiliary input for external remote control (action camera etc.). In this case the built in time-lapse or video recording function have to be started manually.
    Adjustable parameters: Camera movement direction / movement speed 0.5-100 min /meter / (time interval between exposures, 1-120sec for remote control capable cameras.)
  • P SLIDE MODE: camera / camcorder continuous movement programmed for maximum five stages, or moving Time-lapse capable devices without auxiliary input for external remote control (action camera etc.). Camera movement path can be pre-programmed.
    The start and stop position have to be determined in the OM SLIDER application and if necessary, additional four intermediate position could be given as well. The previously determined path can be played back by the slider any time with thousandth of a millimeter accuracy. The speed of the playback is adjustable in the application. The camera performs continuous and smooth movement. The OVERMOTION CAMERA SLIDER starts and stops video recording via an optional cable.
    Adjustable parameters: Camera movement direction / movement speed 0.5-100 min /meter / (time interval between exposures, 1-120sec for remote control capable cameras.) / 1-5 fixed camera path.
  • STEP P MODE: specifically for PROFESSIONAL time-lapse recordings where camera movement can be programmed for maximum five stages and harmonized with camera exposure. The camera path can be pre-programmed in 1 to 5 stages.
    The start and stop position have to be determined in the OM SLIDER application and if necessary, additional four intermediate position could be given as well. You can specify the number of desired exposures and the delay time in seconds between the exposures. The Slider will automatically calculates the distances between the steps and the timing of camera exposures based on the previously fixed path, requested number of captures and delay time.
    The application displays the recording in due time, the number of images completed, and elapsed time from the start of the program, the distance traveled, and the completed Time-Lapse Video length.
    The OVERMOTION CAMERA SLIDER starts the exposure of the camera via an optional cable and coordinates the movement, so you can always get blur-free shots. Ideal for long-time exposures, night time-lapse captures.
    Adjustable parameters: 1-5 fixed camera path / number of exposures / delay between exposures 1-600sec

  • Stop motion P MODE: directly for STOP MOTION recordings, camera / camcorder movement can be programmed for maximum five stages and harmonized with camera exposure. The camera path can be pre-programmed in 1 to 5 stages.
    The start and stop position have to be determined in the OM SLIDER application and if necessary, additional four intermediate position could be given as well. You can specify the number of desired exposures and the delay time in seconds between the exposures. The Slider will automatically calculates the distances between the steps and the timing of camera exposures based on the previously fixed path, requested number of captures and delay time.
    The OM SLIDER application displays the recording in due time, the number of images completed, and elapsed time from the start of the program, the distance traveled, and the completed Time-Lapse Video length.
    OVERMOTION CAMERA SLIDER will start the exposure of the camera via an optional cable and coordinate the movement by pressing the large red EXPO button on the display. The exposure have to be restarted by pressing the red expo button again after rearranging the theme.

The OM SLIDER app minimum system requirement: Bluetooth connection, Android OS 4.0.3 or later!!!

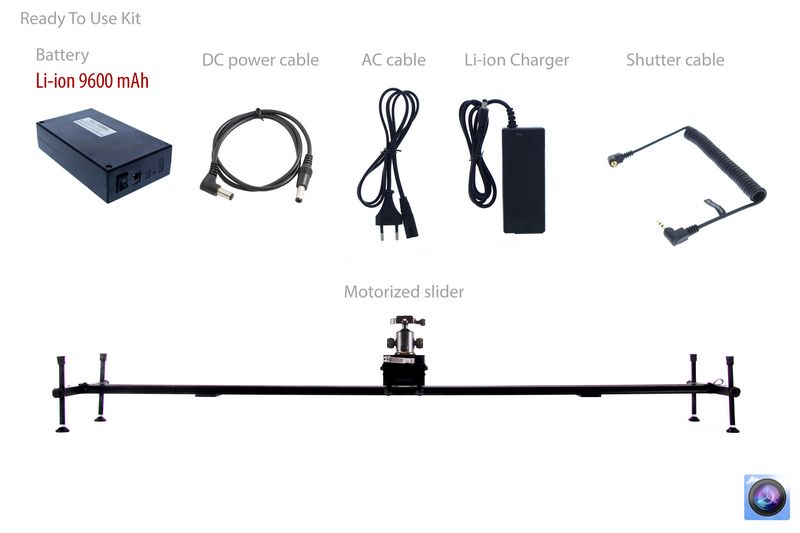

Package contents:

  • 1pcs Stepper Motorized Camera Slider with ballhead and stands (1M or 1.5M length rail, choose from the list)
  • 1pcs Battery ( Li-ion, 9600 mAh, 12,6V )
  • 1pcs Dc power cable ( 12V-24V)
  • 1pcs AC cable (100V-250V)
  • 1pcs Battery Charger ( input:100V-240V AC, output : 12.6V, 3A)
  • 1pcs Shutter cable to your camera ( choose from the list )
